220 Vac Laboratory Standard Clean Room Glove Box H2o & O2 Index <1ppm

Brand Name : HiYi

Model Number : Standard Glovebox

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 15 work days

Packaging Details : paper case

Product name : Glovebox with Gas Purification System

Power Board : 220 VAC

Material : 304 Stainless Steel

Box lighting : LED lights, optional yellow light

Water oxygen index : <1ppm

Glove mouth : material hard aluminum alloy, POM optional, O-ring seal

Contact Now

Laboratory Standard Glovebox



OVERVIEW



The working gas inside the glove box is circulated through a closed loop of the box, piping, purification system and circulation fan, and the diameter PlC controls the circulation; the working gas is circulated through the purification column, and the water and oxygen it contains are adsorbed off, and then returned to the glove box, with the circulation time, the water and oxygen content in the working gas inside the box will gradually decrease, and finally reach less than 1ppm. After a certain period of time, the column will be saturated with adsorption and can be regenerated and reused.



220 Vac Laboratory Standard Clean Room Glove Box H2o & O2 Index <1ppm

FEATURES & BENEFITS



  • Features: Compact design of integrated gas purification system
  • Index: H2O, O2＜1ppm
  • Ultra-low leakage rate: (<0.001vol%h)
  • Transition hatch: simple design, easy to open and close
  • Foot switch: for temporary adjustment of the pressure in the chamber
  • Automatic cleaning: PLC control, one key to complete the replacement of the atmosphere in the glove box
  • Circulation: closed circuit circulation
  • Regeneration: automatic control
  • Data memo: automatic recording system data
  • Alarm function: each function invalid operation prompt, H2O, O2 content upper limit alarm
  • Translated with www.DeepL.com/Translator (free version)

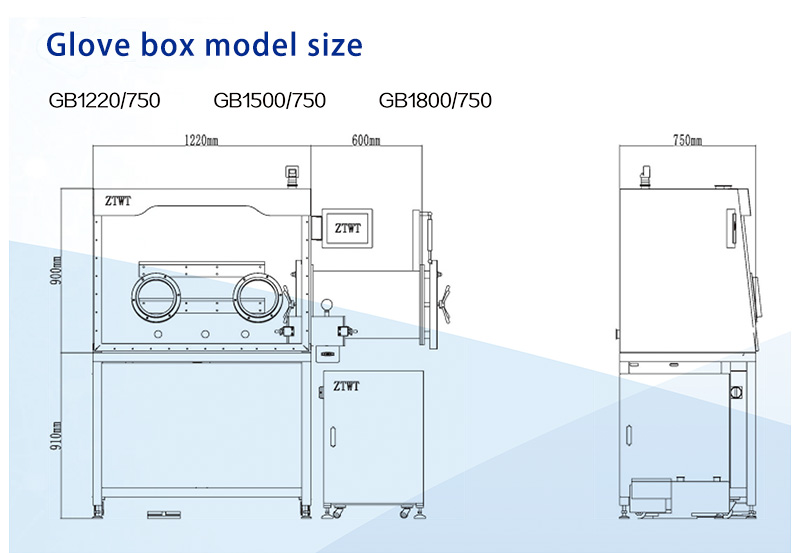

SPECIFICATIONS



Types Box specifications (L*W*H)mm Transition Module Specifications (mm)
Single station (single side) 1220*750*900   Large cabinФ360*600
small cabinФ150*300
Three gloves (one side) 1500*750*900   Large cabinФ360*600
small cabinФ150*300
Duplex (single sided) 1800*750*900 2440*750*900 Large cabinФ360*600
small cabinФ150*300
Duplex (opposite) 1220*1000*900   Large cabinФ360*600
small cabinФ150*300
Three stations (opposite) 1500*1000*900   Large cabinФ360*600
small cabinФ150*300
Four stations (opposite) 1800*1000*900 2440*1000*900 Large cabinФ360*600
small cabinФ150*300
Glove box with modular design can be freely combined; can be non-standard customization.



220 Vac Laboratory Standard Clean Room Glove Box H2o & O2 Index <1ppm



APPLICATION

220 Vac Laboratory Standard Clean Room Glove Box H2o & O2 Index <1ppm
