ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument

Name: ZR3061 Flue Gas Flow Rate Tester Handheld Portable Instrument
Brand: HiYi
Price: 11500 USD

Buy cheap ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument product

Brand Name : HiYi

Model Number : ZR-3061

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 11500 ~12000 PER PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000/set/month

Delivery Time : 5-7 work days

Packaging Details : alloy case

Product name : ZR-3061

Input Voltage : 15 ... 30 VDC

Flue gas dynamic pressure : (0 ~ 2000) Pa

Flue gas flow rate : (1 ~ 45) m/s

Size : length 85 x width 55 x height 140 MM

Weight : 0.5kg

Contact Now

ZR-3061 Flue Gas Flow Rate Tester

OVERVIEW

ZR-3061 Flue gas flow rate tester is a handheld portable instrument used to measure the flue gas flow rate, flow, dynamic pressure, static pressure, temperature and other parameters of stationary pollution source.

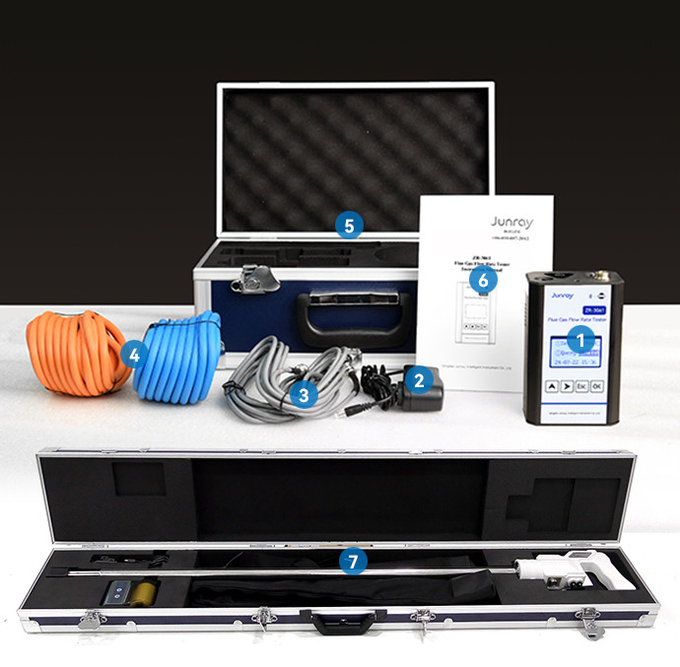

FEATURES

1, Host
2, power adapter
3, smoke temperature wire
4, silicone rubber tube (bule & orange)
5, Main aluminum box
6, product manual
7, ZR-D06B TMS probe & Accessory box

ZR-3061 Flue Gas Flow Rate Tester Handheld Portable Instrument

1. Lightweight

> LCD display, English menu operation.
> Light, portable, and easy to operate.

2. High Test Efficiency

> Imported high-precision micro-differential pressure sensor: high precision, and small temperature drift.
> Calculate the average flow rate, average pressure, flue gas flow and other parameters automatically.
> Automatic zero correction and software calibration functions to ensure the measurement accuracy.

3. Long battery life

> Built-in lithium-ion rechargeable battery: can be used continuously for more than 24 hours.
> Can save 200 groups of measurement data without lost after shutdown.

SPECIFICATION

Parameters	Range	Resolution	Maximum permitted error
Flue gas dynamic pressure	(0 ~ 2000) Pa	1 Pa	± 2%
Flue gas static pressure	(-30 ~ 30) kPa	0.01 kPa	± 4%
Flue gas temperature	(0 ~ 500) ºC (expandable)	1 ºC	±3 ºC
Flue gas flow rate	(1 ~ 45) m/s	-	± 5%
Ambient atmospheric pressure	(50 ~ 130) kPa
Operating temperature	(-20 ~ 50) ° C
Charging time	< 6h
Battery operating time	> 24h
Power adapter	Input AC (100~240) V, 50/60Hz; Output DC5V 2A
Size	(length 85 x width 55 x height 140) mm
Weight	About 0.5kg
Power consumption	≤ 0.5 W
