Farm Eco Milk Analyzer for Dairy Quality Testing on Farms
OVERVIEW
Farm ECO is high quality milk analyzer for measurement of the
main milk parameters in 60sec. In addition,Thermal Printer,USB Export and Language Customization.
The analyzer is adopted ultrasonic sensor, with compact and light body, convenient for small space, also work with the car power.
Three standard calibrations are available, Cow milk,Sheep milk, and UHT.
The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.
FEATURES
Farm ECO is high quality milk analyzer for measurement of the
main milk parameters in 60sec. In addition,Thermal Printer,USB Export and Language Customization.
The analyzer is adopted ultrasonic sensor, with compact and light body, convenient for small space, also work with the car power.
Three standard calibrations are available, Cow milk,Sheep milk, and UHT.
The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.
SPECIFICATION
| Technical Overview |
| Sample Volume | 5-20 ml |
| Sample Speed | 60 sec |
| Sample Temperature | 1° - 42°C |
| Humidity | 0 - 80% RH |
| Interface | RS 232 port |
| Interface | USB |
| AC Power Supply | 95 - 250V |
| DC Power Supply | 12V |
| Dimensions | 139/47/181mm |
| Weight | 0.9 kg |
PARAMETER
| Measuring Ranges | Accuracy |
| Fat | 0.01% - 25% | ±0.06% |
| Solids-Non-Fat (SNF) | 3% - 15% | ±0.15% |
| Density | 1000 - 1160 kg/m3 | ±0.3 kg/m3 |
| Protein | 2% - 15% | ±0.15% |
| Lactose | 0,01% - 20% | ±0.2% |
| Salts | 0,4% - 4% | ±0.05% |
| Added Water | 0% - 70% | ±3.0% |
| Freezing Point | -0.4 ~ -0.7°C | 0,005 °C |
| Sample Temperature | 1 - 42°C | ±1°C |
APPLICATION
Milk analyzer makes a quick analysis of milk and liquid dairy products: Cow milk, Whey, Concentrated milk, Sheep milk, Cream, Recovered milk, Buffalo milk, Skimmed milk, Etc.
And can be calibrated by the customer with specific samples of Yoghurt, Flavoured milk, Ice-cream mixtures, etc.
|
|

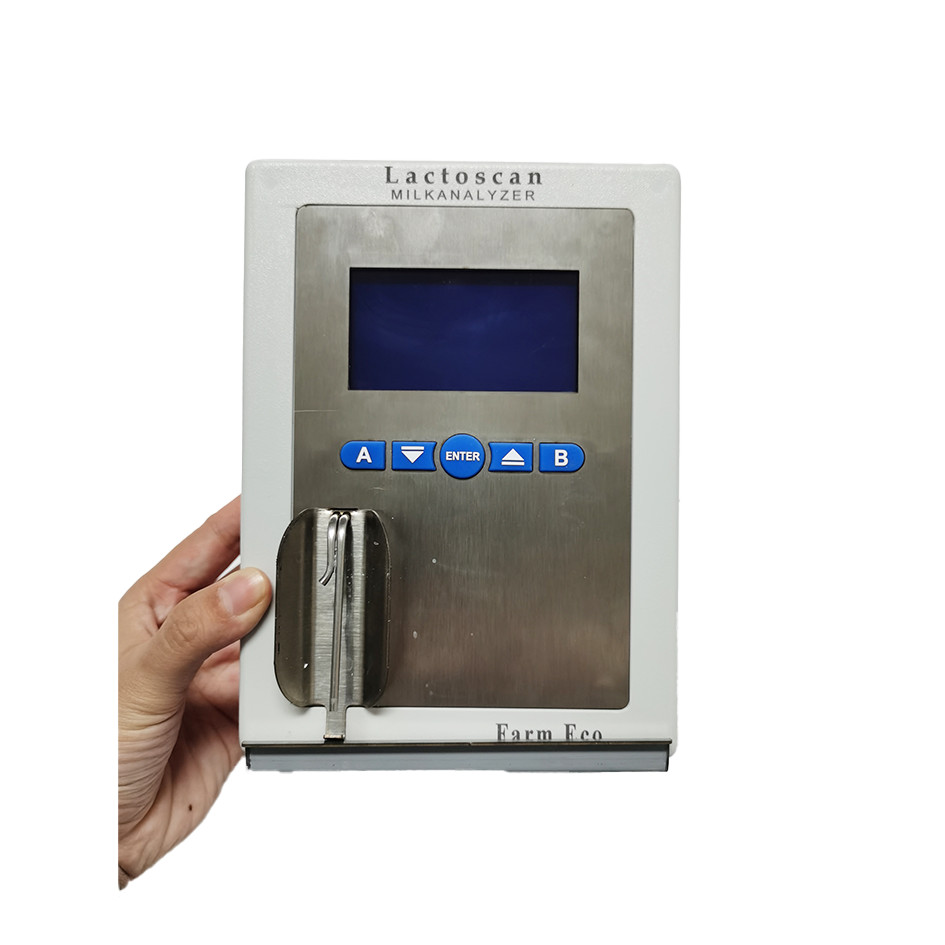

Farm Eco Milk Analyzer for Dairy Quality Testing on Farms Images
|
